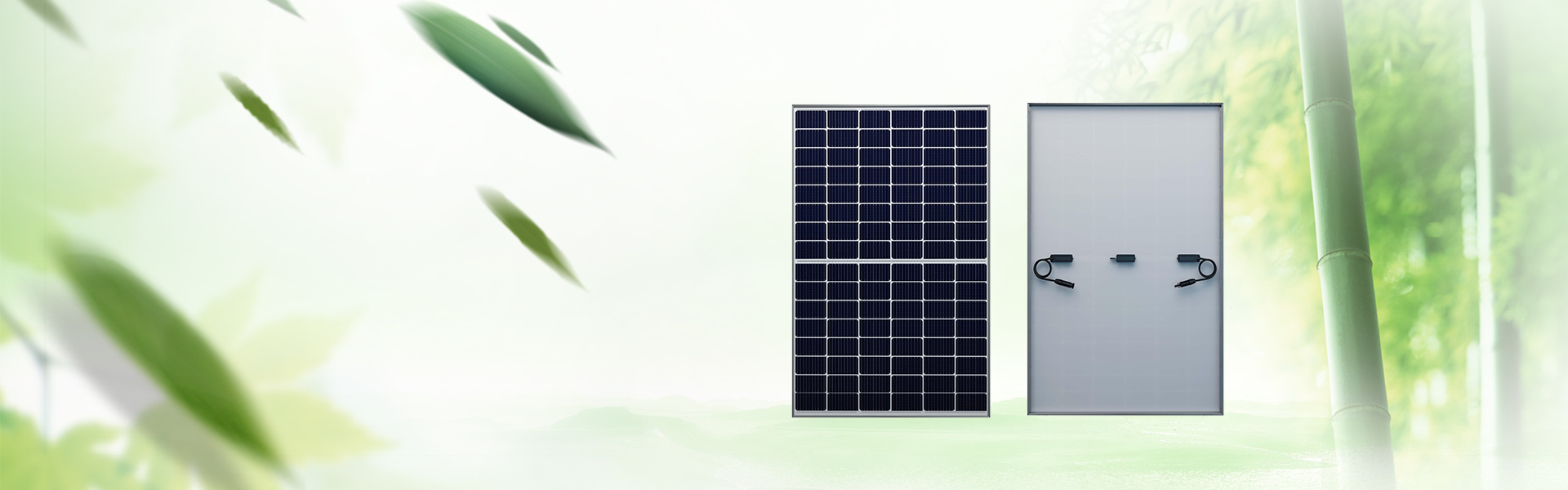

ZHU JKL96-D-（445-465W）NH
445-465W
Product Features
Basic Parameters
Product Features
High power
Adopting large-sized TOPCon cell and overlaying bifacial glass half cut multi-busbar technology,it hashigher power generation.
Lower electrical losses
The multi-busbar design effectively reduces the impact of hidden cracks and broken and the half cut cell structure effectively reduces the impact of shadow occlusion.
Low risk ofhot spots
Adopting new generation cell technology and optimizing circuit design to achieve better temperature coeficient and thermal resistance.
Reliability
Strict quality control and TUV Rheinland,CE,testing certification ensure higher module reliability.
Leading Quality Standards
15
yrQuality assurance
30
yrPower guarantee
-
0.40
%Annual decay
Basic Parameters
Mechanical Parameters
| Cell | N-type TOPCon（96） |
| Dimensions | 1762±2mmx1134±2mmx30±1mm |
| Weight | 22kg±3% |
| Glass | 3.2mm AR coating tempered glass,low Iron |
| Frame | Anodized aluminium |
| junctionbox | IP68,3 diodes |
| Wireway | 4mm²，350mm (+)/350mm (-)or Customlzed Length |
| Packaging | 36pieces/pallet |
| Loading quantity | 40 HQ: 936pieces,17.5 meter truck:1296pleces |
Drawing
Mechanical Parameters
| Maxsystem voltage | 1500V DC |
| Operating Temperature | -40C~+85℃ |
| Fuse's rated current | 25A |
| Maxload front | 5400Pa |
| Maxload back | 2400Pa |
| NOCT | 45±2°C |
| Backside rate | 80%±5℃ |
| Safety level | Class ll |
| Fire performance | UL Type l |
I-V Curve
Electrical Parameters
| Model | JKL96-D-445NH | JKL96-D-450NH | JKL96-D-455NH | JKL96-D-460NH | JKL96-D-465NH | ||||||||||
| STC/NOCT |
|
|
|
|
| ||||||||||
| Maximum power [W] |
|
|
|
|
| ||||||||||
| Maximum working voltage [V] |
|
|
|
|
| ||||||||||
| Maximum working current [A] |
|
|
|
|
| ||||||||||
| Open circuit voltage [V] |
|
|
|
|
| ||||||||||
| Short circuit current [A] |
|
|
|
|
| ||||||||||
| EFF [%] | 22.27% | 22.52% | 22.77% | 23.02% | 23.27% | ||||||||||
| Power tolerance [W] | 0 ~+5W | ||||||||||||||
| Short circuit current temperature coefficient | +0.046%/℃ | ||||||||||||||
| Open circuit voltage temperature coefficient | -0.250%/℃ | ||||||||||||||
| Maximum power temperature coefficient | -0.300%/℃ | ||||||||||||||
| STC | Irradiance 1000W/m², Cell temperature 25°C,Spectral AM1.5 | ||||||||||||||
| NOCT | lrradiance 800W/m², Ambient temperature 20℃, Spectrum AM1.5, Wind speed 1m/s | ||||||||||||||
Note: The electrical performance in this product catalog do not only refer to a single module, or are they promised in the contract. The electrical parameters are only used for comparison between different module types.
